Baby Chicks Cage Include Drinking System
Details Introduction:
Automatic Nipple Watering Line
Depending on the equipment type in the cage system,one or two watering lines regulated by height with 4 nipples on each are installed. Nipples possess 3 degrees of freedom (360 °) and with a productivity of 80 ml/min.
Silver star offers reliable, effective and easy-to-work water system. The aim of this system consists in supply of qualitative water in the quantity that is necessary for a bird. Besides, it is used for carrying out a medicinal watering.
Why to choose cage raising chicken ?
1:The environment of chicken house is controllable, which is conducive to the physiological and production needs of chicken.
2: Automatic drinking, feeding, manure cleaning, eggs collecting, saving manpower, reducing raising cost, multi-layer cage saves more space than floor raising, high land utilization rate, saving chicken house construction and land cost.
3: Due to the good isolation between the close chicken house and the outside , the chance of cross contamination of chickens will be greatly reduced, which is conducive to the prevention and control of epidemic diseases, and save the cost of epidemic prevention.

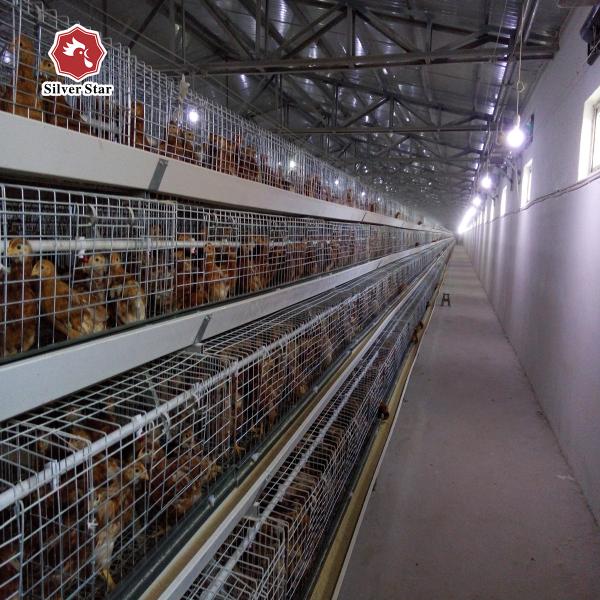

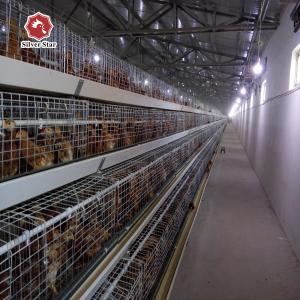

Full automatic system of baby chick cage:
1:H type battery pullet/broiler cage
2:3tiers, 4tiers,5 tiers, 6tiers, 8tiers
3:Q235 double hot galvanized anti-corrosion
4:Q235 national standard double hot galvanized bridge steel cage,hot galvanized steel feed trough,ball type automatic water equipment ,white PVC pipe ,3MM U type galvanized steel shelves,closed-end pressure-reducer;Al-Zn material feeding system,AL-Zn material manure cleaning system,ventilation system,lighting system,environment controlling system and so on.
Baby chick cage specification :
| Tier | Cell size | Whole size | Capacity/set | Average area/bird |
| 3-tiers | 61*50*35cm | 183*230*150cm | 126 birds(2 kgs) | 435.7 cm2 |
| 4-tiers | 61*50*35cm | 183*265*170cm | 168 birds(2kgs) | 435.7 cm2 |
