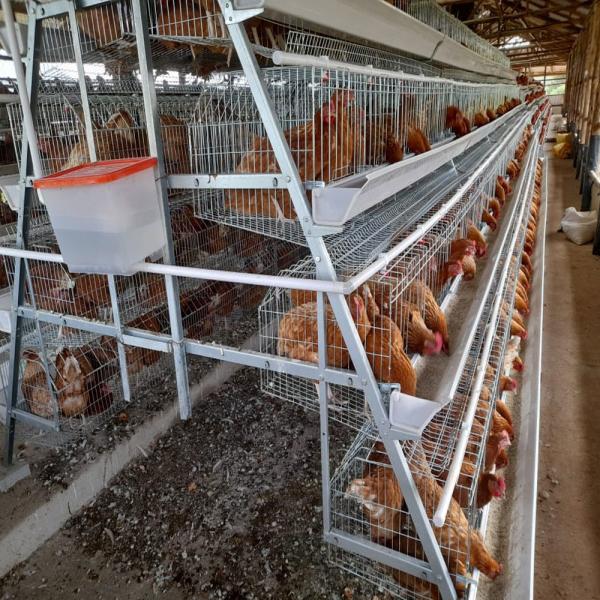

A Type Q235 Steel Hot Galvanized Baby Chick Cage
Cold/Hot dipped galvanzied baby chick cage include :
(1)A type automatic broiler battery chicken cage
(2)3,4,Tiers
(3)Q235 with double cold-galvanized coating for superior anti-corrosion properties.
(4)Q235 national standard bridge steel cage, double cold-galvanized,
(5)PVC feed trough painted white,
(6)Ball-type automatic waterer,
(7)PVC pipe painted white,
(8)Galvanized steel shelves in U-shape, measuring 3mm thick,
(9)Device for closed-end pressure reduction,
(10)Al-Zn material-based feeding system,
(11)Al-Zn material-based manure cleaning system,
(12)Ventilation and lighting infrastructure,
(13)Environmental management system,
Why to choose cage raising chicken ?
1:The chicken house has a controllable environment, which benefits the chickens' physiological needs and production efficiency.
2:Automatic systems for drinking, feeding, manure cleaning, and egg collecting help save labor and reduce raising costs. Multi-layer cages are more space-saving than traditional floor raising, offering higher land utilization rates and lowering the costs associated with building and maintaining chicken houses.
3: Because the enclosed chicken house is well-isolated from the outside, the risk of cross-contamination among chickens is greatly minimized, enhancing the prevention and control of diseases and reducing the costs associated with epidemic prevention.
Full automatic system of baby chick cage:
1:H-type battery enclosure for pullets and broilers
2:3 tiers, 4 tiers, 5 tiers, 6 tiers, 8 tiers
3:Q235 double-layer hot-dip galvanized for corrosion protection
4:Q235 national standard double hot-dip galvanized bridge steel cage, hot-dip galvanized steel feed trough, ball-type automatic water equipment, white PVC piping, 3mm U-type galvanized steel shelves, closed-end pressure reducer; Al-Zn material feeding system, Al-Zn material manure cleaning system, ventilation system, lighting system, environmental control system, among others.
Baby chick cage specification :
| Tier | Cell size | Whole size | Capacity/set | Average area/bird |
| 3-tiers | 61*50*35cm | 183*230*150cm | 126 birds(2 kgs) | 435.7 cm2 |
| 4-tiers | 61*50*35cm | 183*265*170cm | 168 birds(2kgs) | 435.7 cm2 |
